Joyetech eGo AIO Box

Joyetech eGo AIO Box

eGo AIO Box, being all-in-one style, attaches the innovative anti-leaking structure with 2ml e-juice capacity. It is powered by a 2100mAh built-in battery. Childproof structure is applied, simply twist the cap with pressure. It is simple and convenient to use with several fashionable indicator lights. Multiple colors, changeable stickers, and its simplicity and efficiency all make the eGo AIO Box quite popular and unique.

Parameters:

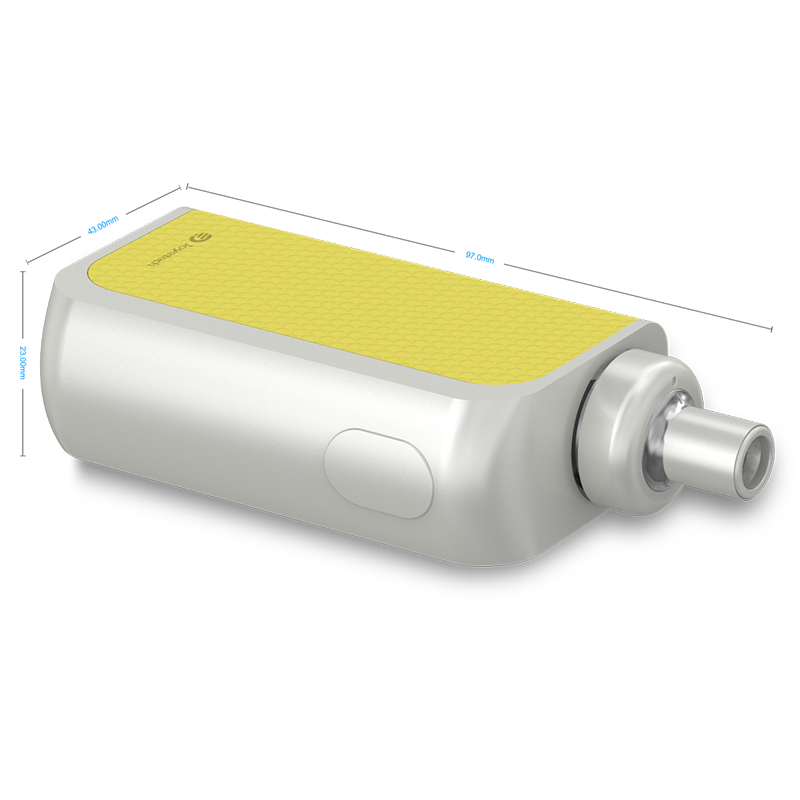

• Size: 23.0*43.0*97.0mm
• Battery capacity: 2100mAh
• Atomizer capacity: 2ml
• Length: 106.50mm
• Color: Black, Grey, Red, Yellow, White

ΠProduct Parameters:

• 1 x eGo AIO Box
• 2 x BF SS316-0.6ohm MTL.
• 1 x Mouthpiece
• 1 x USB cable
• 1 x Quick Start & Warranty Card
• 1 x Warning Card

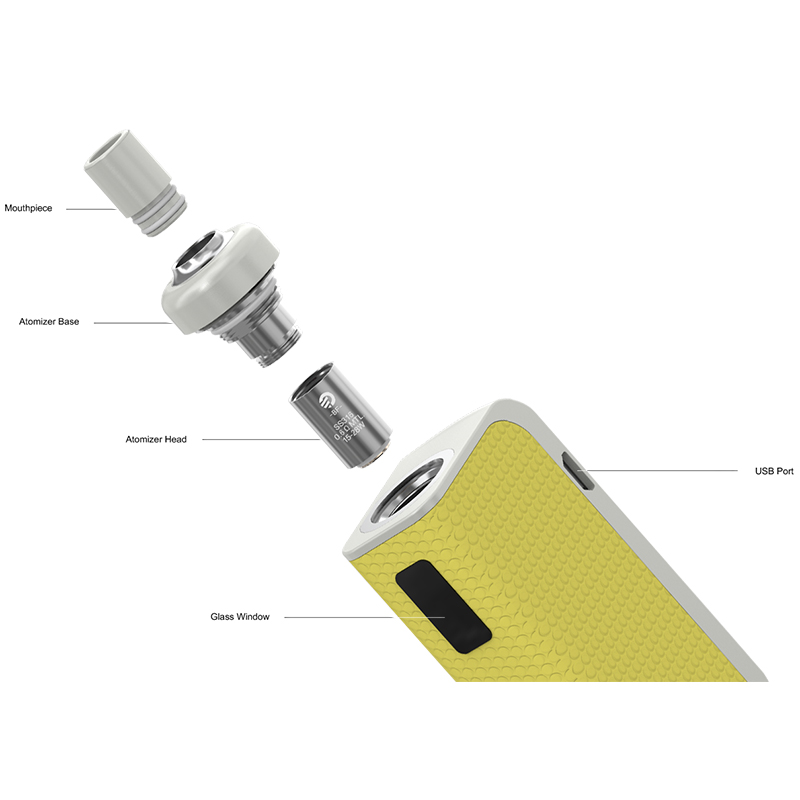

All-In-ONE Style

eGo AIO Box applies all-in-one style with atomizer inserted inside, which is quite convenient to use. Petite yet powerful enough to produce large vapor.

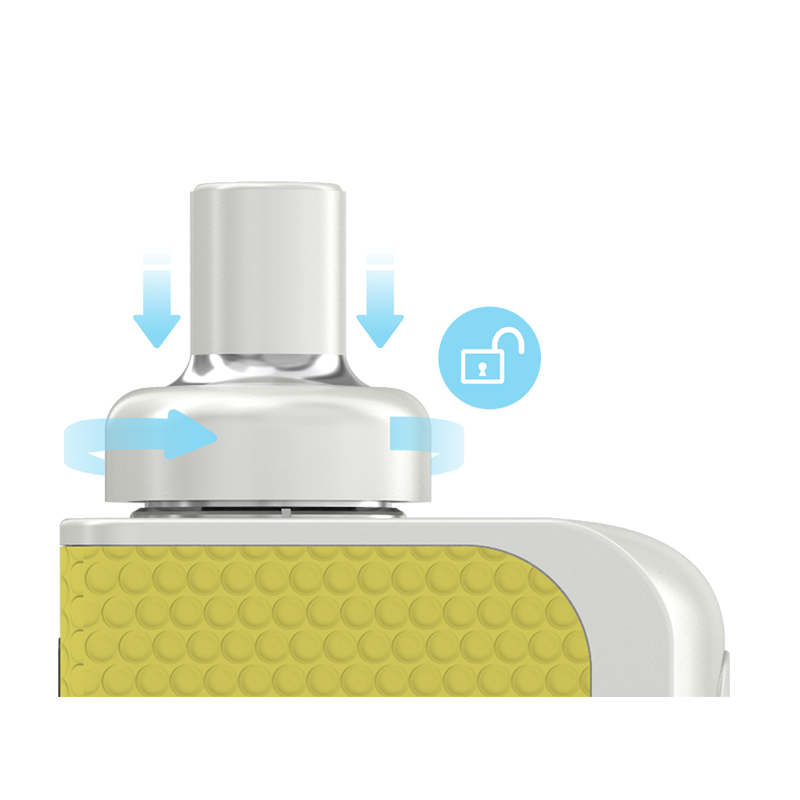

Child Lock to Ensure Security

Child lock system is adopted in the eGo AIO Box.One need to press the top cap to screw or unscrew the atomizer base.

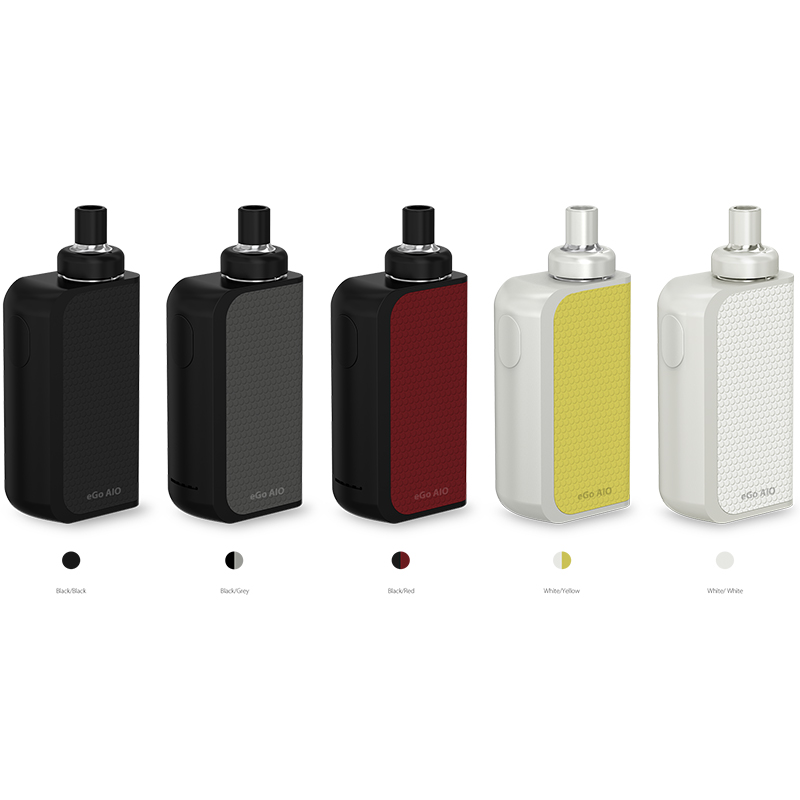

Choose Your Color

In power-off condition, long press the fire button to turn off the indicate light or shift among the color of red, yellow, green, blue, indigo, white or purple.

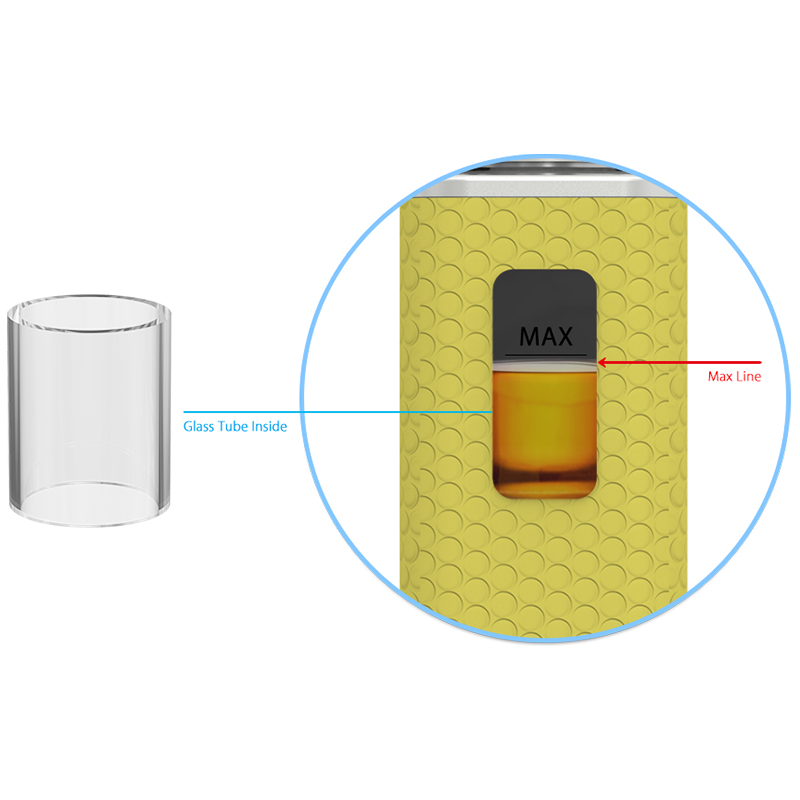

E-juice filling

Press the cap to unscrew the atomizer cap, then inject the liquid directly into the cambered slot.

NOTE:

Note: 1.Please don't fill beyond the max line to avoid overflow when reassemble.
2. Please drip a few drops of e-juice to the atomizer head before its first use to avoid dry burn.

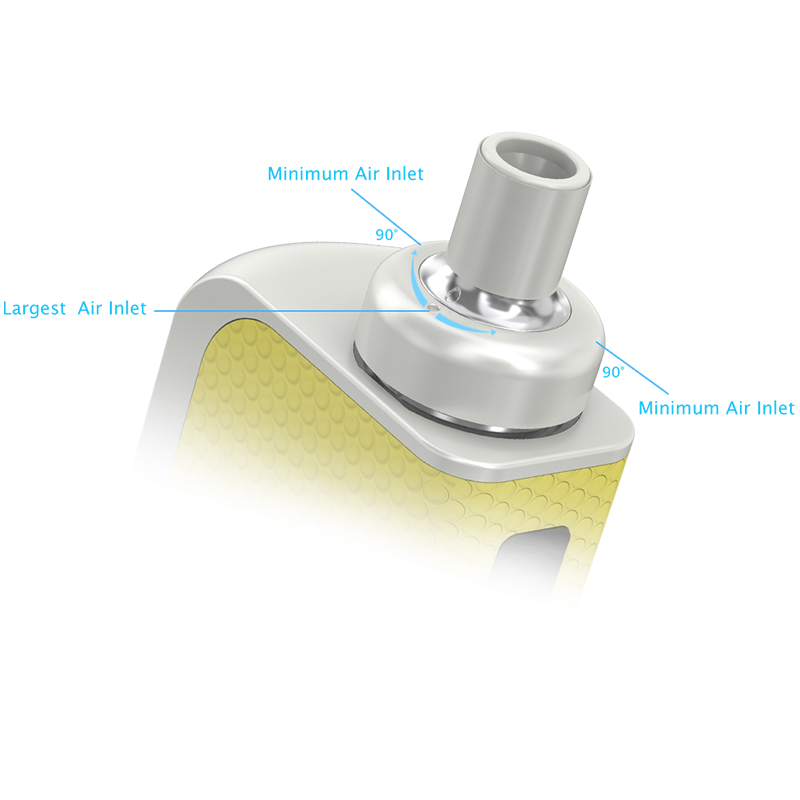

Adjustment of Air Inflow

Rotate the airflow ring on the top cap clockwise or counterclockwise to adjust the airflow inlet.
The airflow inlet will be the largest when both signs match with each other. Rotate it 90 degrees to the left or right will reach to the minimum air inflow.

Multicolor Stickers To Color Your Life

There are a number of colorful stickers for your options.

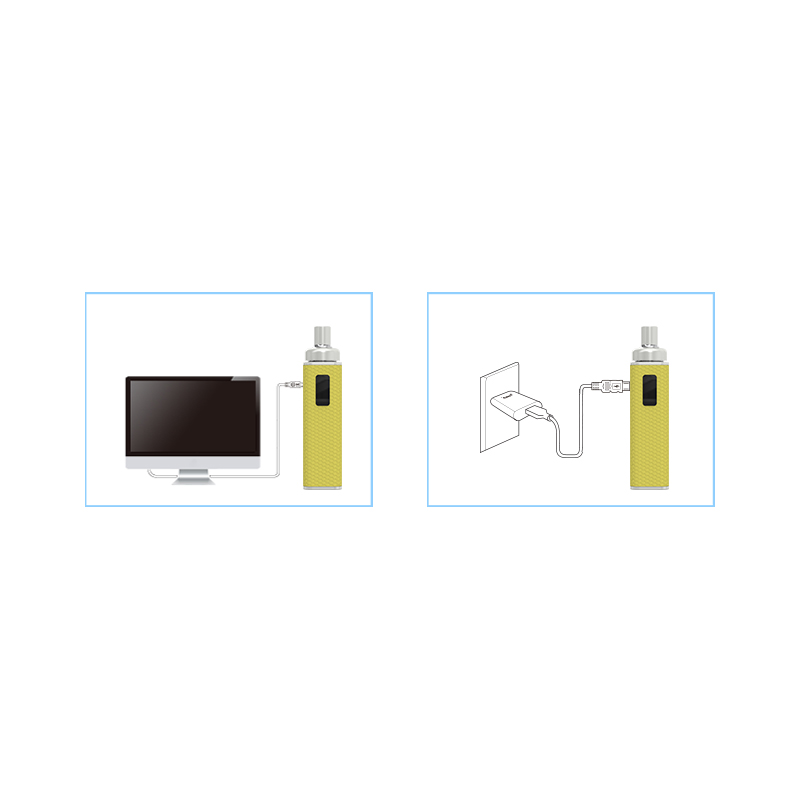

Charging

Simply charge eGo AIO D22 by connecting it with a computer or a wall adapter (output: DC 5V) via USB cable.
When it's fully charged, the button light will go out.
